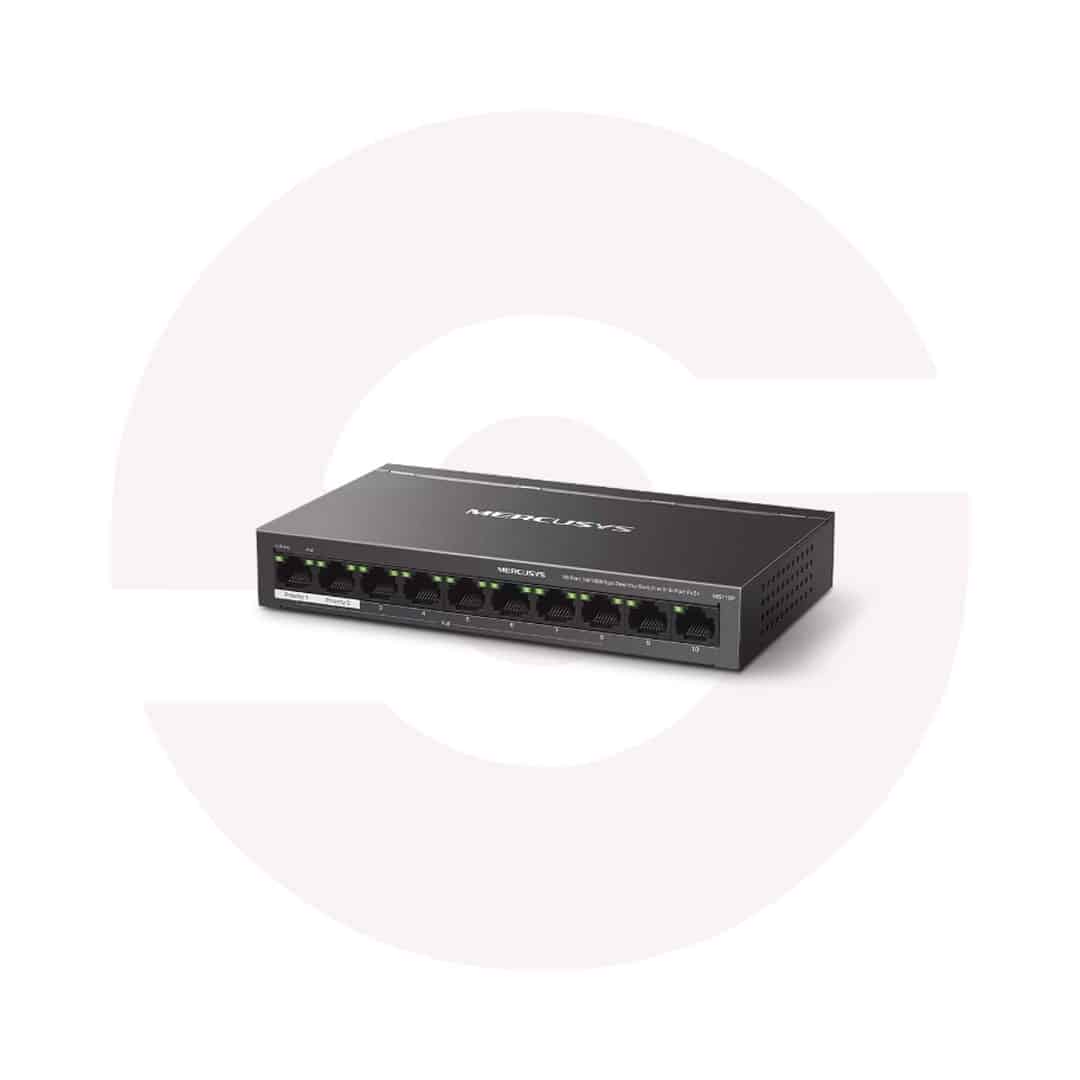

Mercusys MS110P

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Dimensions

171*98*27 mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W

Interfaces

10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

Max Power Consumption

2.96W（220 V / 50 Hz, no PD connected）

77.52W（220 V / 50 Hz, with 65W PD connected）

Max Power Consumption

10.064 BTH/h （no PD connected)

263.568 BTH/h（with 65W PD connected）

Package Contents: • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Weight

1 kg

Dimensions

10 × 10 × 10 cm
