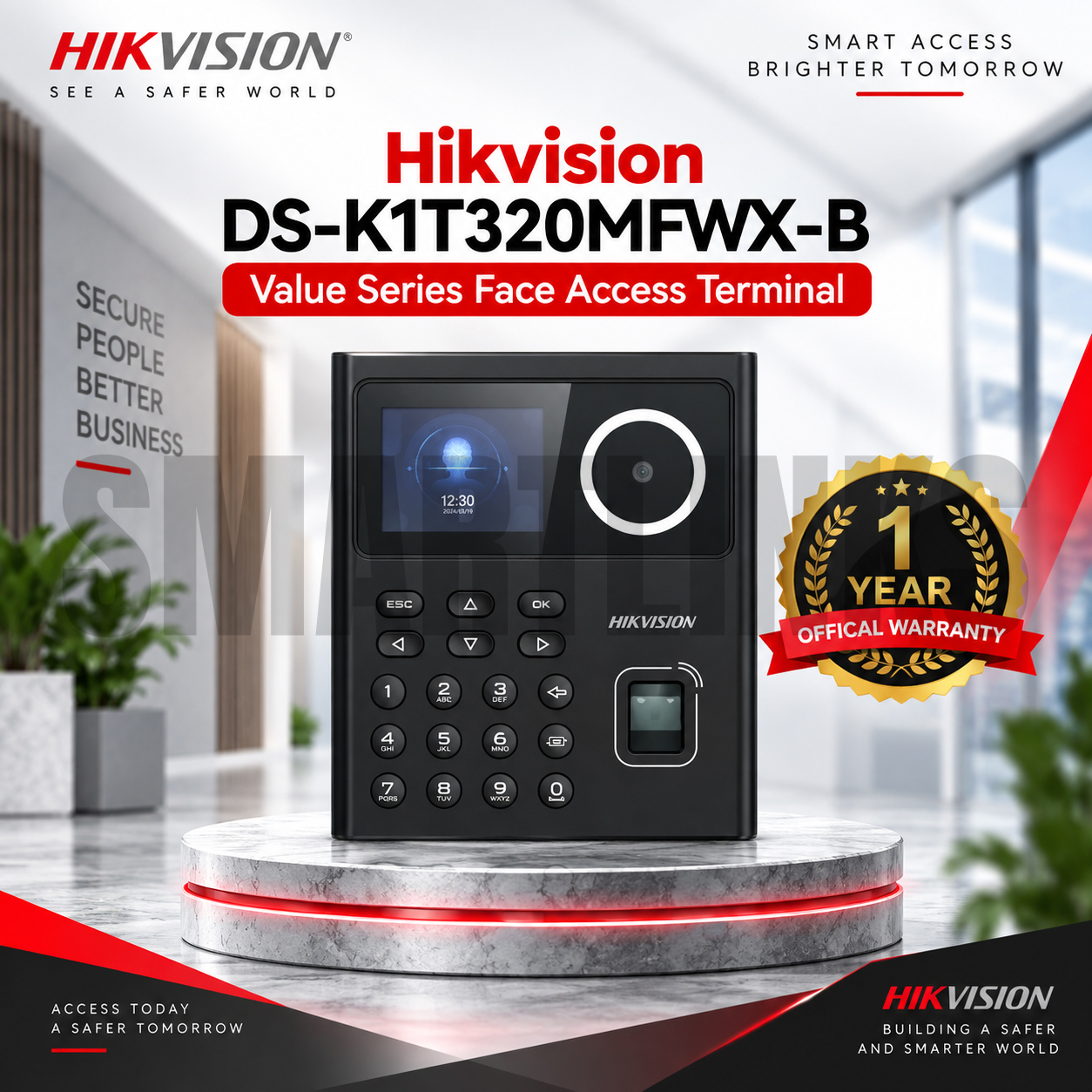

Hikvision DS-K1T320MFWX-B Face Recognition & Fingerprint Terminal

Hikvision DS-K1T320MFWX-B Face Recognition Terminal

The Hikvision DS-K1T320MFWX-B is a compact biometric face access terminal designed to provide fast, flexible and convenient identity authentication. Combining face recognition, fingerprint verification, M1 card reading and PIN authentication in a single device, it is an effective choice for businesses looking to improve access control and employee attendance management.

Suitable for offices, corporate buildings, educational environments and other professional locations, the DS-K1T320MFWX-B provides multiple authentication options while maintaining a compact and modern design. It can also support local time and attendance functions, making it useful for organizations that want access management and attendance features from the same terminal.

Fast Face Recognition

The Hikvision DS-K1T320MFWX-B Face Recognition Terminal is designed for quick user authentication. Its face recognition process takes less than 0.2 seconds per user, helping reduce waiting time when employees or authorized personnel enter a controlled area.

This fast authentication performance can be particularly useful during busy office hours when several users may need to authenticate within a short period.

2MP Lens and 2.4-Inch LCD

The terminal features a built-in 2MP camera lens for facial authentication. A 2.4-inch LCD screen provides a convenient interface for device operation and authentication feedback.

Its compact display helps keep the overall terminal size practical while still providing users with the visual information needed for daily operation.

Multiple Authentication Options

One of the main advantages of the Hikvision DS-K1T320MFWX-B is its flexible authentication system. Users can authenticate using face, fingerprint, M1 card or PIN, giving administrators several options when configuring access permissions.

Multi-factor authentication is also supported, providing additional flexibility for environments where more than one credential may be required.

Large User Capacity

The DS-K1T320MFWX-B offers useful capacity for small and medium-sized organizations. It can manage up to 500 registered faces, 1,000 fingerprints and 1,000 cards.

The terminal can also store up to 100,000 events, providing substantial record capacity for regular access and attendance activity.

This combination makes the device suitable for workplaces with a growing number of employees or authorized users.

Wi-Fi and Wired Network Support

Flexible networking makes installation easier in different environments. The Hikvision DS-K1T320MFWX-B biometric terminal supports 2.4GHz Wi-Fi using IEEE 802.11b/g/n, providing a wireless networking option.

Wired network connectivity is also supported through an RJ-45 10/100 Mbps self-adaptive Ethernet interface. Businesses can therefore choose a wired or wireless network arrangement depending on the installation location and infrastructure.

Face Anti-Spoofing Technology

For improved biometric authentication, the terminal supports face anti-spoofing functionality. This feature is designed to strengthen the face verification process and provides an additional security capability for access control applications.

The terminal also supports face duplicate checking, which can help prevent the same face from being registered for multiple users.

Access Control and Attendance

The DS-K1T320MFWX-B supports both access control and local time-and-attendance functions, allowing businesses to use one device for multiple workplace management requirements.

Dedicated interfaces for door control make it suitable for controlled entry applications, while attendance functionality allows organizations to record employee attendance activity.

Web-Based Configuration

Administrators can configure the device through a web client, helping simplify device management. The terminal also supports ISAPI and ISUP 5.0 protocols, providing integration possibilities within compatible Hikvision environments and third-party systems.

Flexible Power Option

The Hikvision DS-K1T320MFWX-B uses a 12V DC power supply and consumes no more than 6W. It also supports power supply through a battery installed in a compatible bracket, adding flexibility for certain installation requirements.

Smart Solution for Modern Workplaces

With fast face recognition, fingerprint authentication, M1 card support, PIN verification, Wi-Fi connectivity and local attendance functionality, the Hikvision DS-K1T320MFWX-B provides a versatile biometric solution for modern workplaces.

Its combination of 500 face users, 1,000 fingerprints, 1,000 cards and 100,000 event storage makes it particularly suitable for businesses requiring convenient access management without installing a complicated system.

For offices, enterprises and other controlled environments, the DS-K1T320MFWX-B offers a practical combination of biometric authentication, access control and attendance management in one compact terminal.
