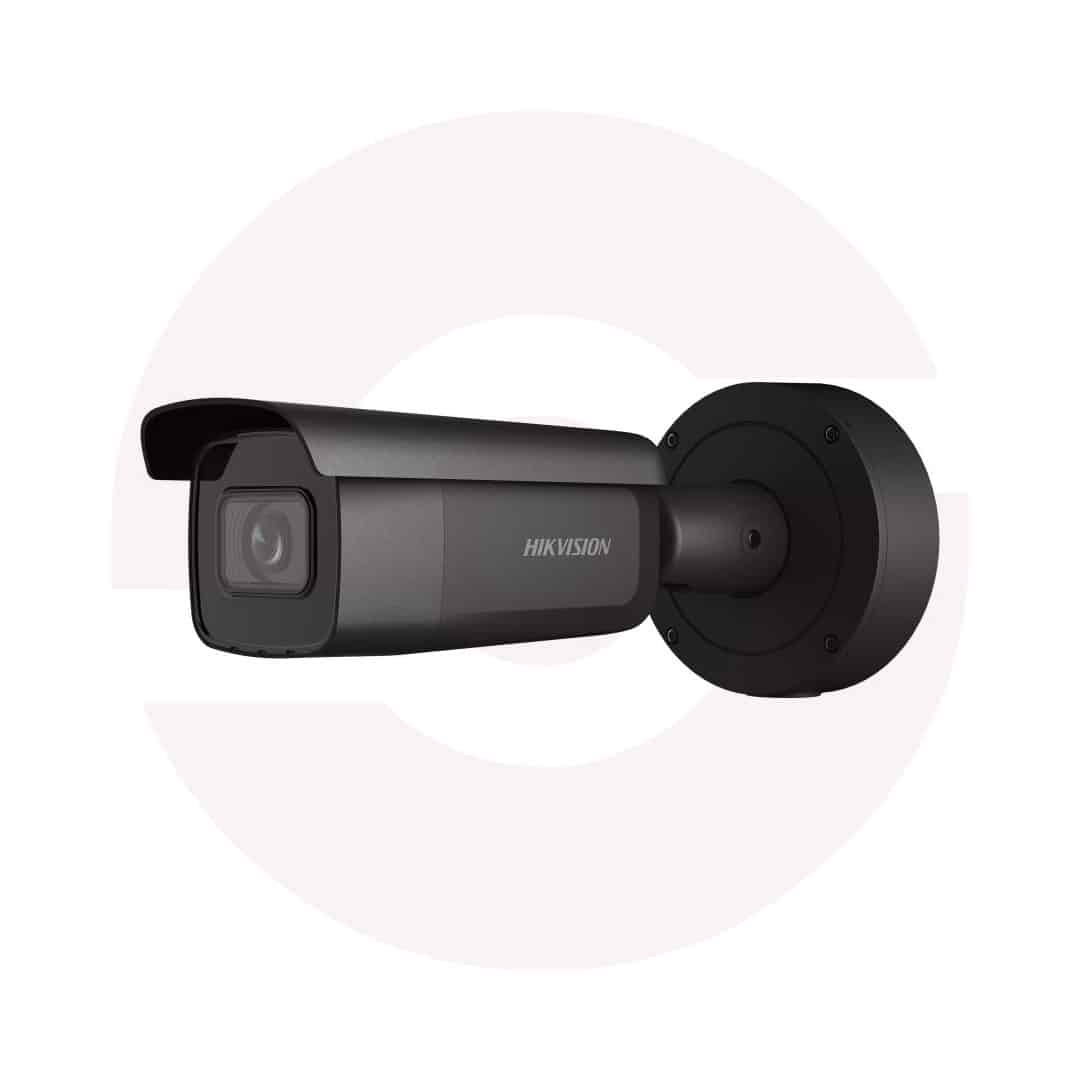

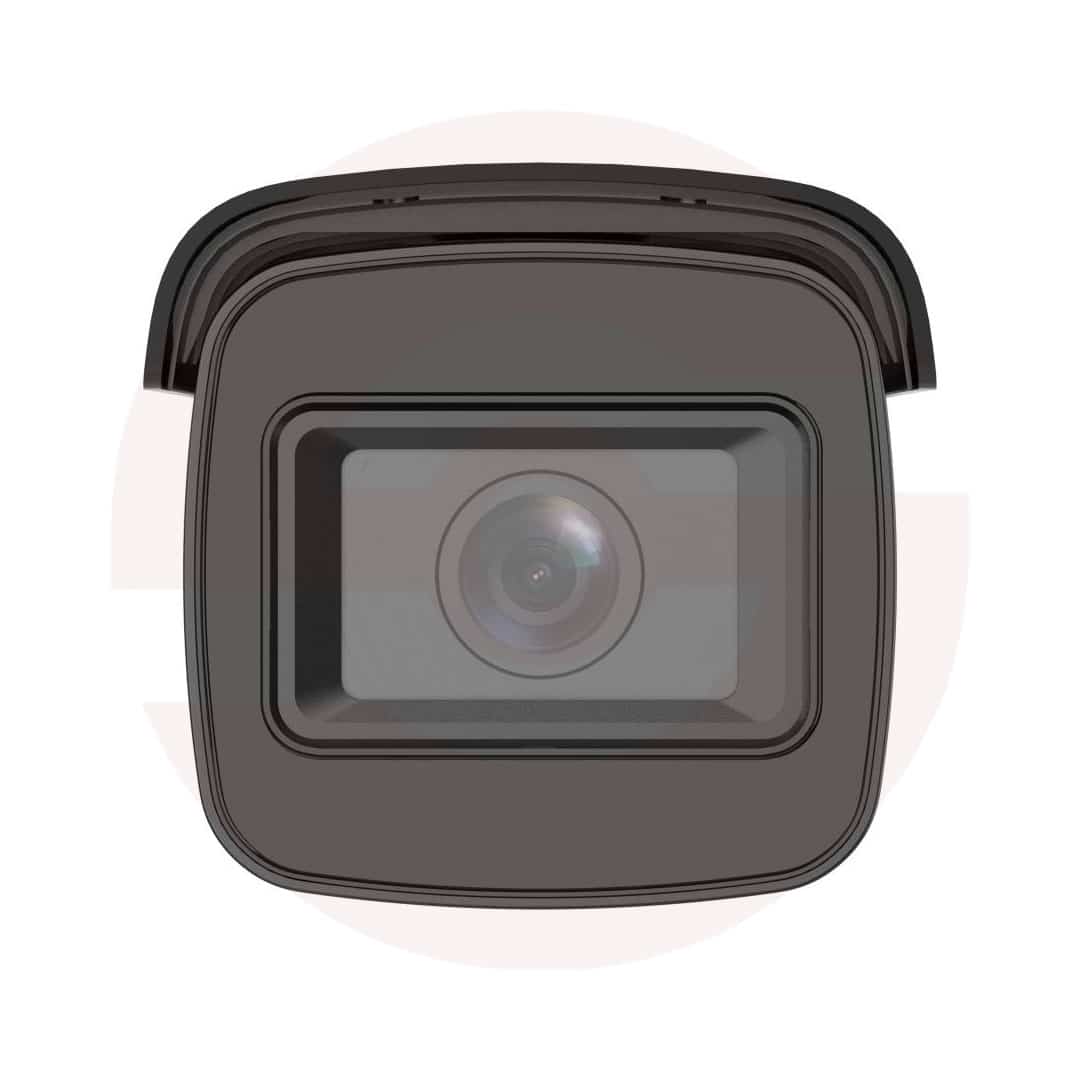

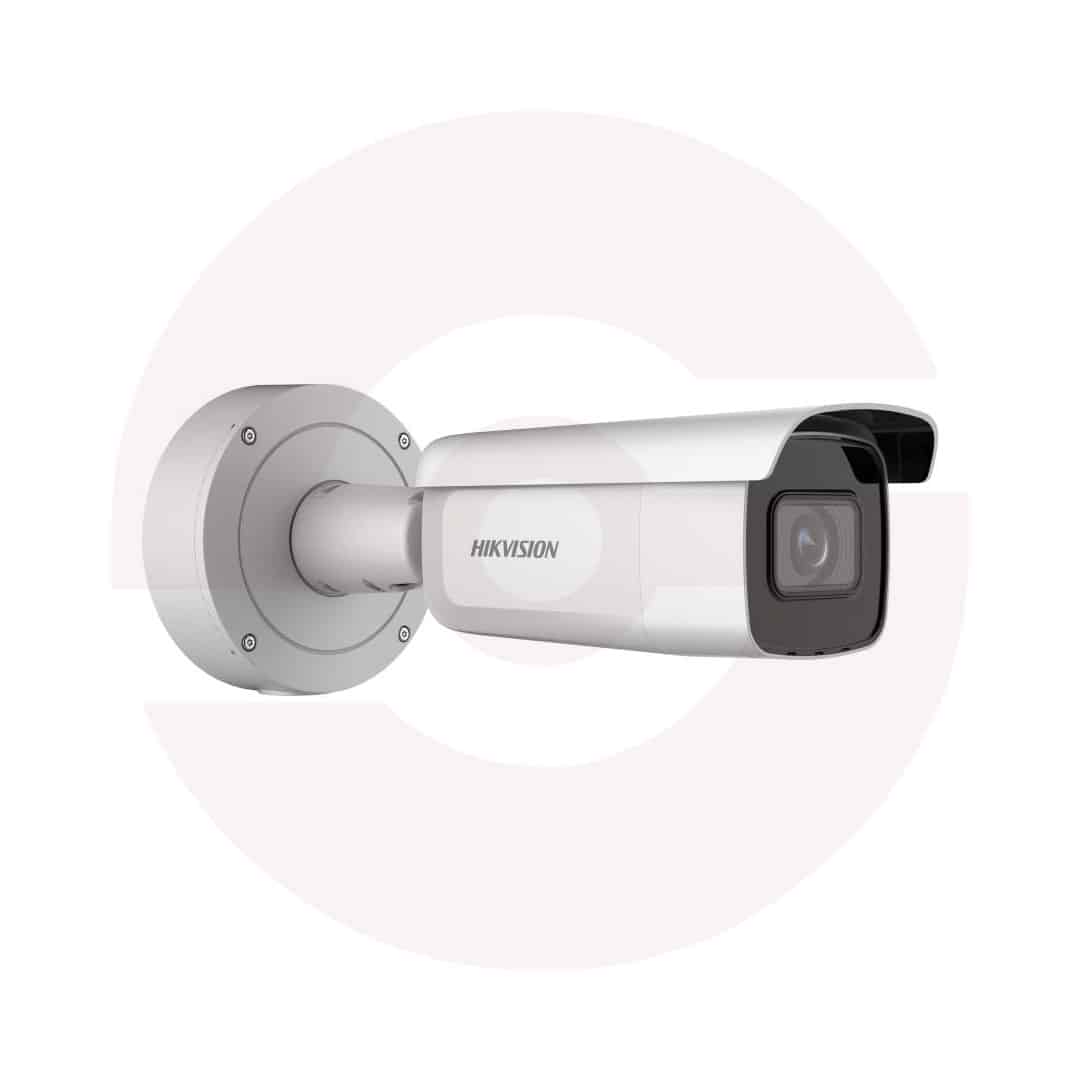

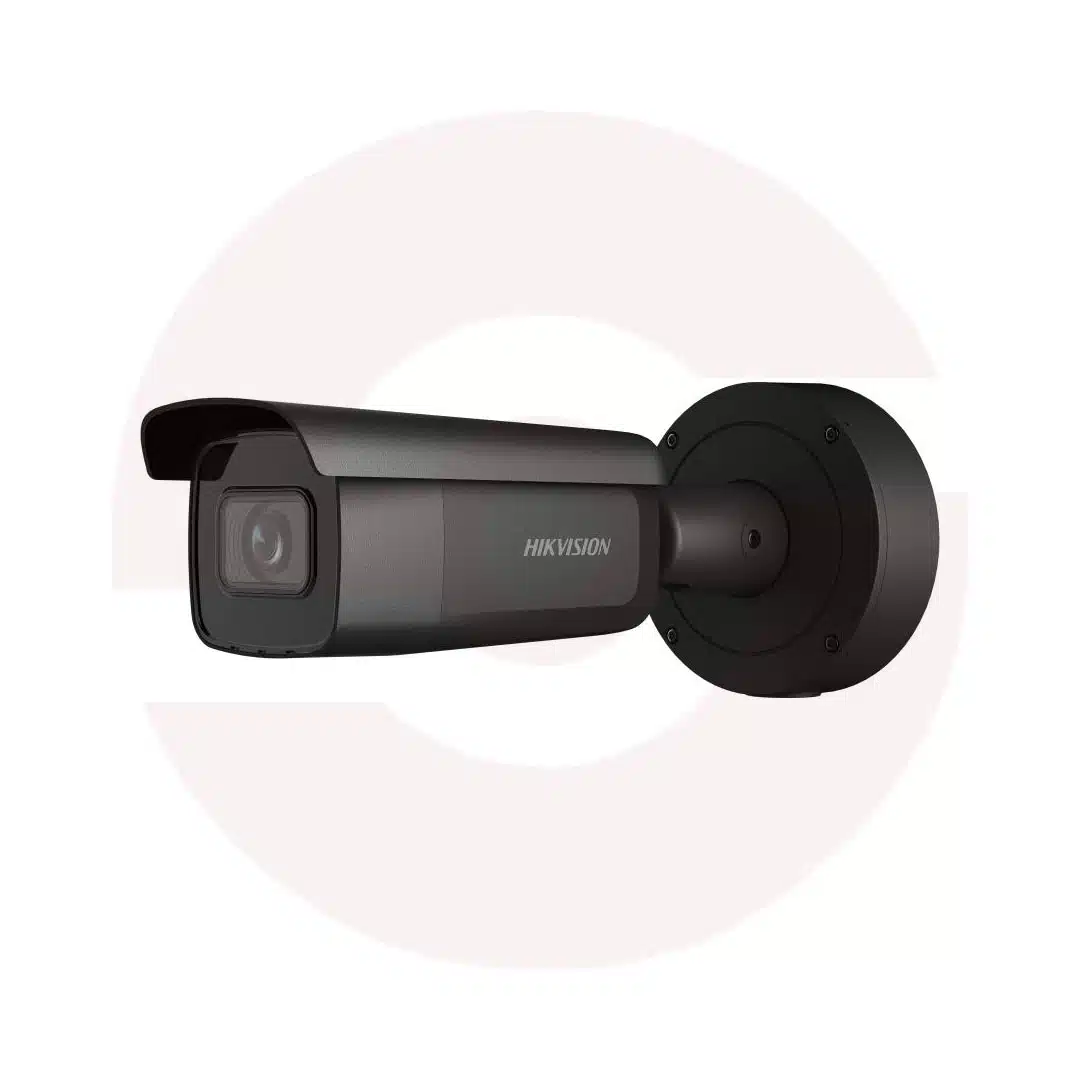

Hikvision DS-2CD2646G2-IZS

4 MP AcuSense Motorized Varifocal Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Motorized varifocal lens for easy installation
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

14 People watching this product now!

Description

  • Camera
  • Image Sensor 1/3″ Progressive Scan CMOS
  • Max. Resolution 2688 × 1520
  • Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
  • Lens Mount Ø 14
  • Iris Type Fixed
  • Aperture F1.4
  • DORI 2.8 to 12 mm:

    Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

    Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 60 m
  • Smart Supplement Light Yes
  • IR Wavelength Yes
  • Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI) 1 fixed region for main stream and sub-stream
  • Audio
  • Audio Type Mono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/Host Up to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
  • Audio

    1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

    1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

    Scene change detection

  • Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
  • Deep Learning Function
  • Face Capture Yes
  • General
  • Power

    12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

  • Material ADC12
  • Dimension Ø 144.1 mm × 345.7 mm (Ø5.7″ × 13.6″)
  • Package Dimension 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
  • Weight Approx. 1445 g (3.2 lb.)
  • With Package Weight Approx. 2571 g (5.7 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

    CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

    LOA (IEC/EN 60950-1)

  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
