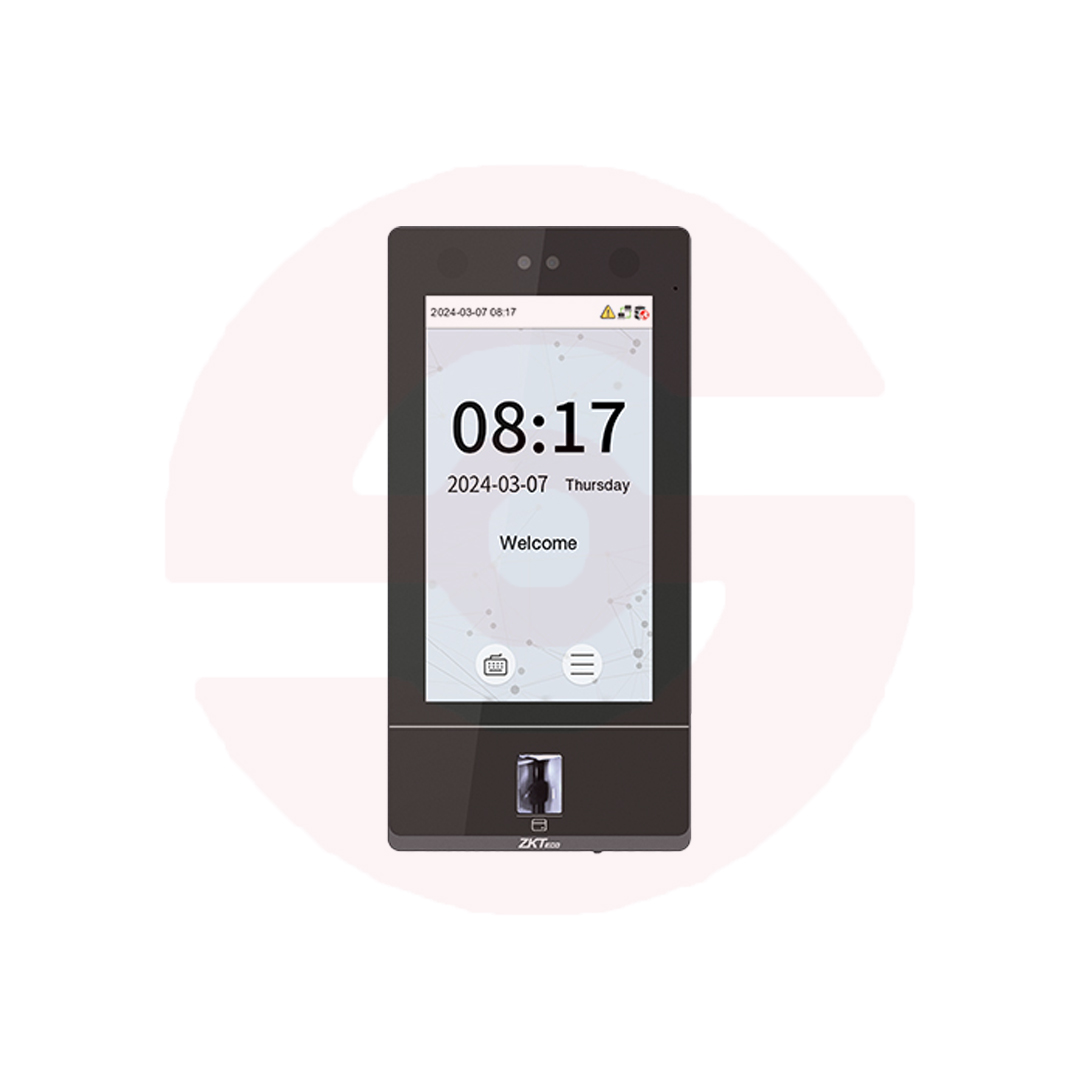

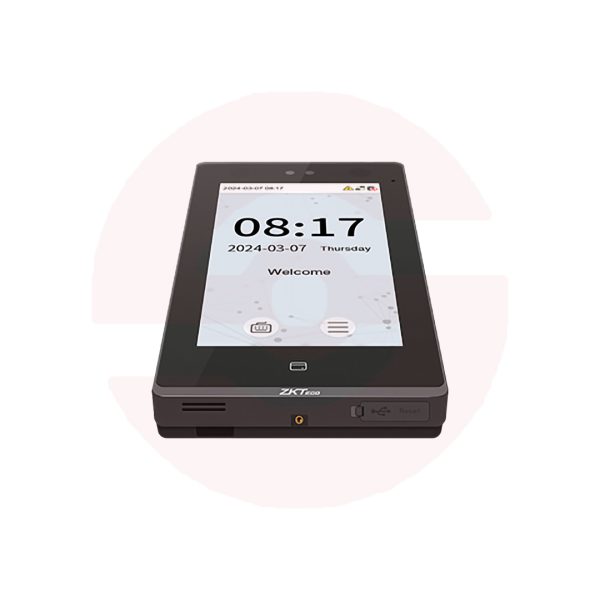

ZKTeco SENSE FACE 7A
SenseFace 7 Series
SenseFace 7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
Description
- Model
Sense Face 7A
Sense Face 7B - Display
7″@ TFT Color Touch LED Screen (600*1024)
- Camera
WDR Binocular Camera @ 1MP
- Operation System
Linux
- Hardware
CPU: Dual Core @ 1GHz
RAM: 512 MB; ROM: 8GB
Speaker: 8 ohm@1 W
Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 7A) - Authentication Method
SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad)
SenseFace 7B: Face / Card / Password (Virtual Keypad) - Fingerprint Template Capacity
SenseFace 7A: 10,000 (1:N) (Standard)
SenseFace 7B: / - Face Templates Capacity
10,000 (1:N)
- Card Capacity
50,000 (1:N) (Standard)
- User Capacity
50,000 (1:N) (Standard)
- Transaction Capacity
300,000 (1:N)
- Max. User Password Length
8 Digits
- Biometric Verification Speed
Sense Face 7A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)
Sense Face 7B: less than 0.35 sec (Facial Authentication) - Touch less Biometric Recognition Distance
30cm to 200cm (Facial Authentication)
- False Acceptance Rate (FAR) %
Sense Face 7A: FAR ≤ 0.01% (Visible Light Facial Authentication); FAR ≤ 0.0001% (Fingerprint)
Sense Face 7B: FAR ≤ 0.01% (Visible Light Facial Authentication) - False Rejection Rate (FRR) %
Sense Face 7A: FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint)
Sense Face 7B: FRR ≤ 0.02% (Visible Light Facial Authentication) - Biometric Algorithm
Sense Face 7A: ZK Face V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Sense Face 7B: ZK Face V4.0 - Card Type
ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional) - Communication
TCP/IP*1
Wi-Fi (IEEE 802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 - Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
- Optional Functions
IC Card, Wi-Fi, Wireless Doorbell
- Access Control Interface
RS485 (RS485 Card Reader / Biometric Reader)
- Net Weight
0.622 Kg
- Power Supply
DC 12V 3A (Optional)
- Operating Temperature
-5°C to 45°C
- Supported Software
Software: ZK Bio CVAccess / ZK BioTime
Mobile App.: ZK Bio Zlink
Cloud Service: ZK Bio Zlink - Installation

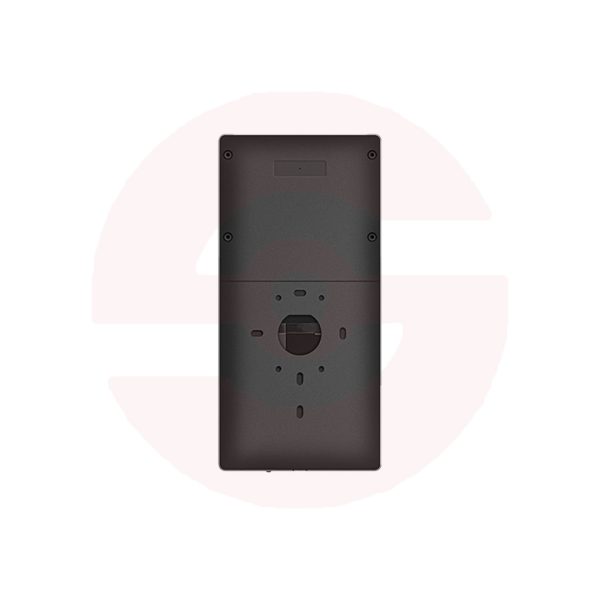

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
- Operating Humidity
10% to 90% RH (Non-condensing)
- Dimensions
Sense Face 7A: 238mm * 115mm * 22.3mm (L*W*H)
Sense Face 7B: 214mm * 115mm * 22.3mm (L*W*H) - Ingress Protection Rating
IP65 (waterproof and dustproof )
