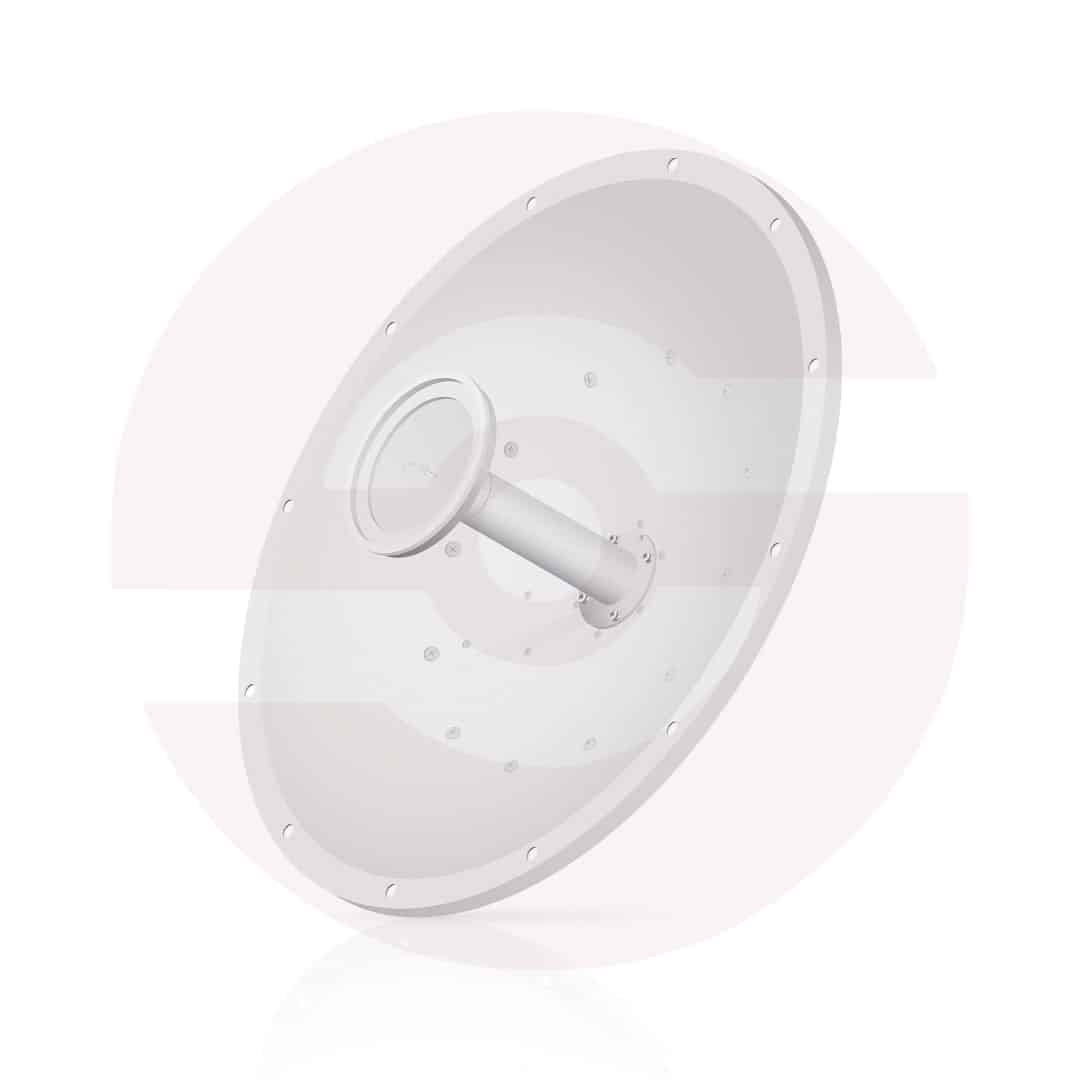

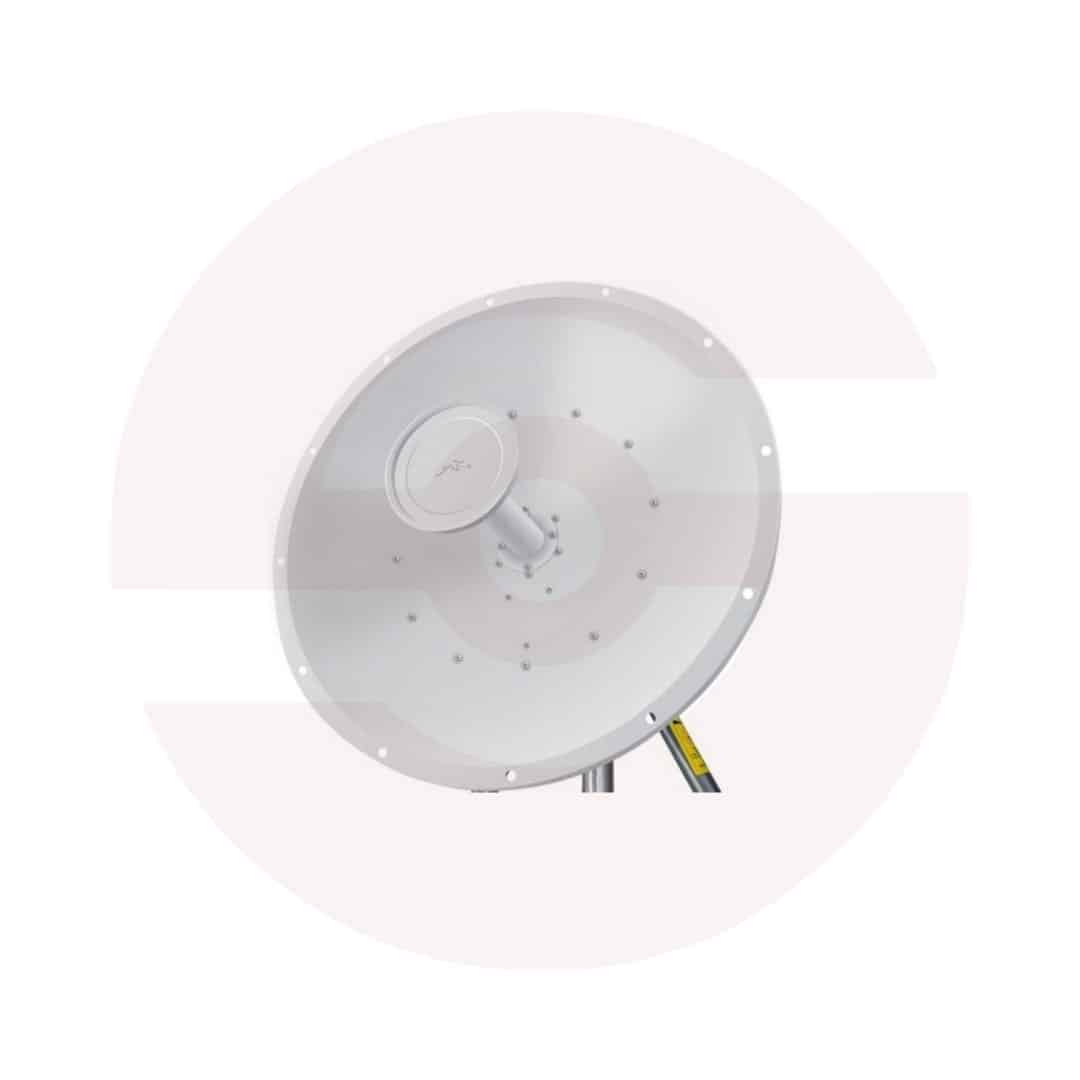

Ubiquiti airMAX AC 5 GHz, 30/34 dBi RocketDish
5 GHz, 30 dBi or 34 dBi high-performance dish antenna.
- 2×2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Included radome and metal shroud
- Compatible with Rocket Prism 5AC, Rocket M5
20
People watching this product now!
Description
| RD-5G30 | |
|---|---|
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 – 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 – 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3 dB) |
| VPOL Beamwidth | 5° (3 dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
