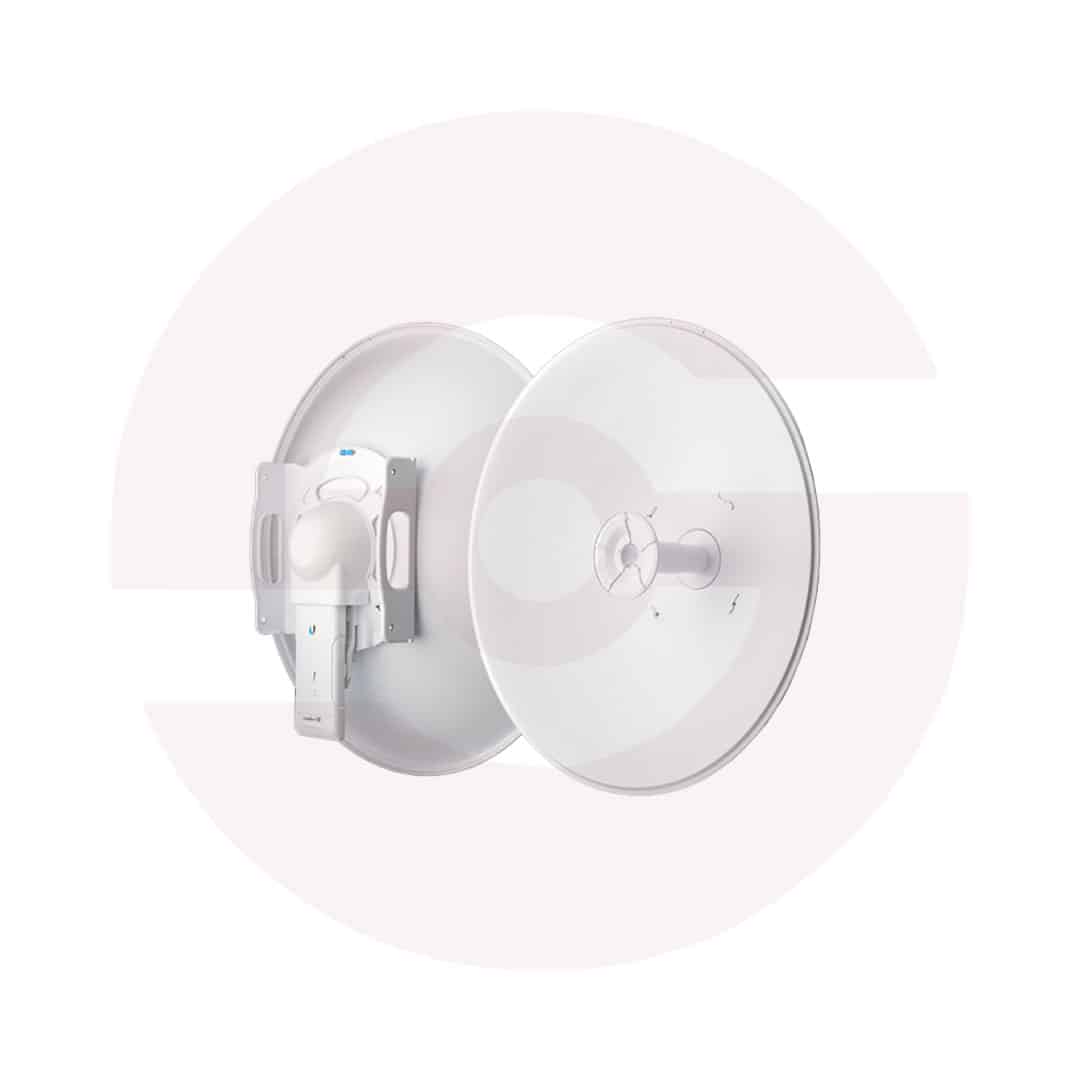

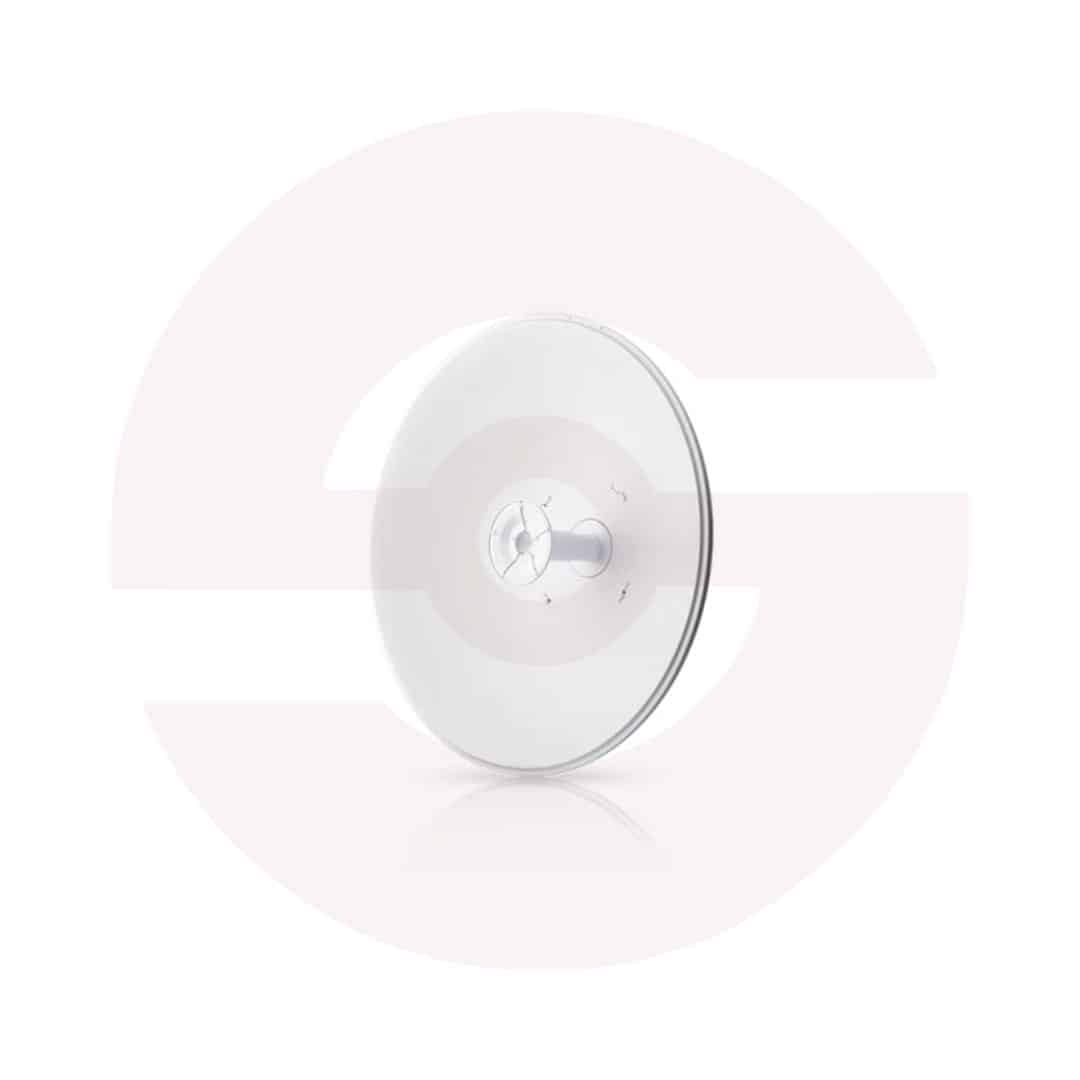

Ubiquiti airMAX 5 GHz, 30 dBi RocketDish LW

5 GHz, 30 dBi RocketDish LW antenna with extended depth of the dish reflector that rejects noise interference in co-location deployments.
  • 2×2 dual-polarity performance
  • Robust mechanical design for outdoor application use
  • Compatible with Rocket Prism 5AC
Compare
Add to wishlist
SKU: RD-5G30-LW Categories: , ,
Description
RD-5G30-LW
Dimensions650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)
Weight7.4 kg (16.31 lb)
Frequency Range5.1 – 5.9 GHz
Gain30 dBi
HPOL Beamwidth5.8° (3 dB)
VPOL Beamwidth5.8° (3 dB)
F/B Ratio30 dB
Max. VSWR1.6:1
Wind Loading790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
PolarizationDual-Linear
Cross-pol Isolation35 dB Min.
ETSI SpecificationEN 302 326 DN2
MountingUniversal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
