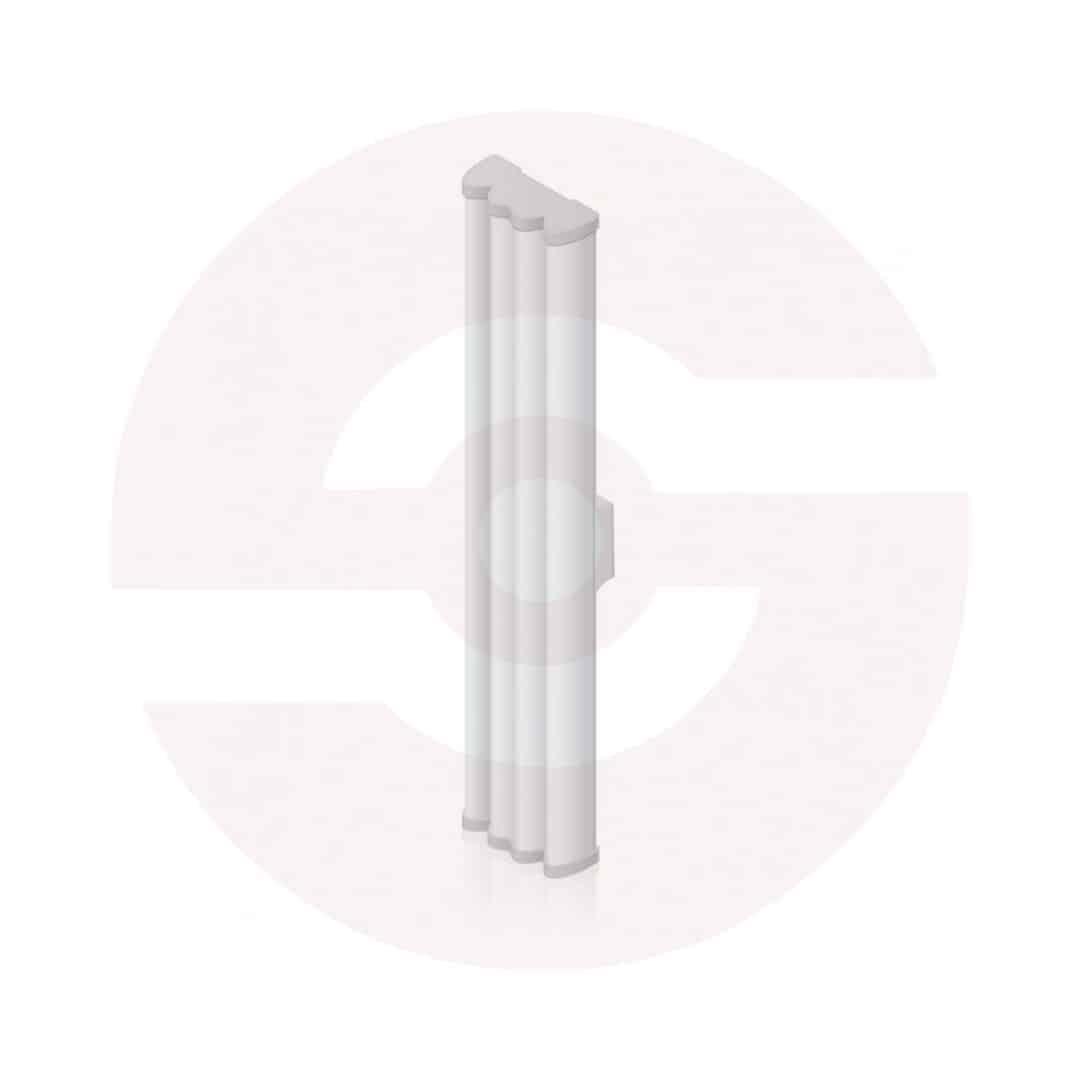

Ubiquiti airMAX-5G20-90 Sector Antenna
- Frequency Range: 5.15-5.85 GHz
- Gain: 19.4-20.3dBi
- Polarization: Dual Linear
- Cross-pol Isolation: 28dB min
- Max VSWR: 1.5:1
- Hpol Beamwidth (6dB): 91°
- Vpol Beamwidth (6dB): 85°Elevation Beamwidth: 4°
- Electrical Downtilt: 2°
17
People watching this product now!
Description
| AM-5G20-90 | |
|---|---|
| Dimensions | 700 x 135 x 70 mm (27.6 x 5.3 x 2.8″) |
| Weight | 5.9 kg (13 lb) |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 19.4 – 20.3 dBi |
| HPOL Beamwidth | 91° (6 dB) |
| VPOL Beamwidth | 85° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 115 N @ 160 km/h (26 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

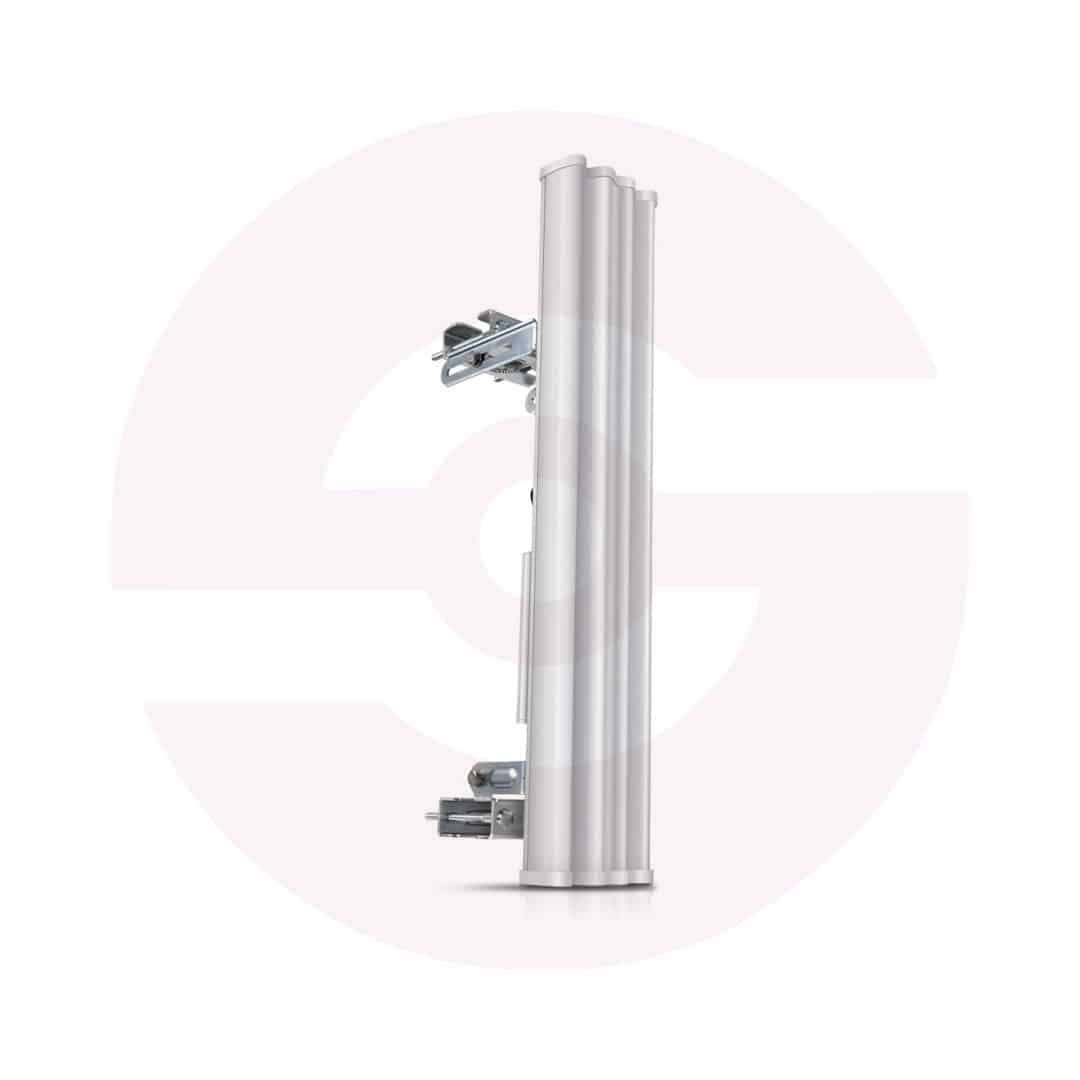

| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
