TP-Link TL-SF1009P 9-Port PoE+ Switch – 8 PoE+ Ports, 65W Power Budget, 250m Extend Mode & CCTV Support

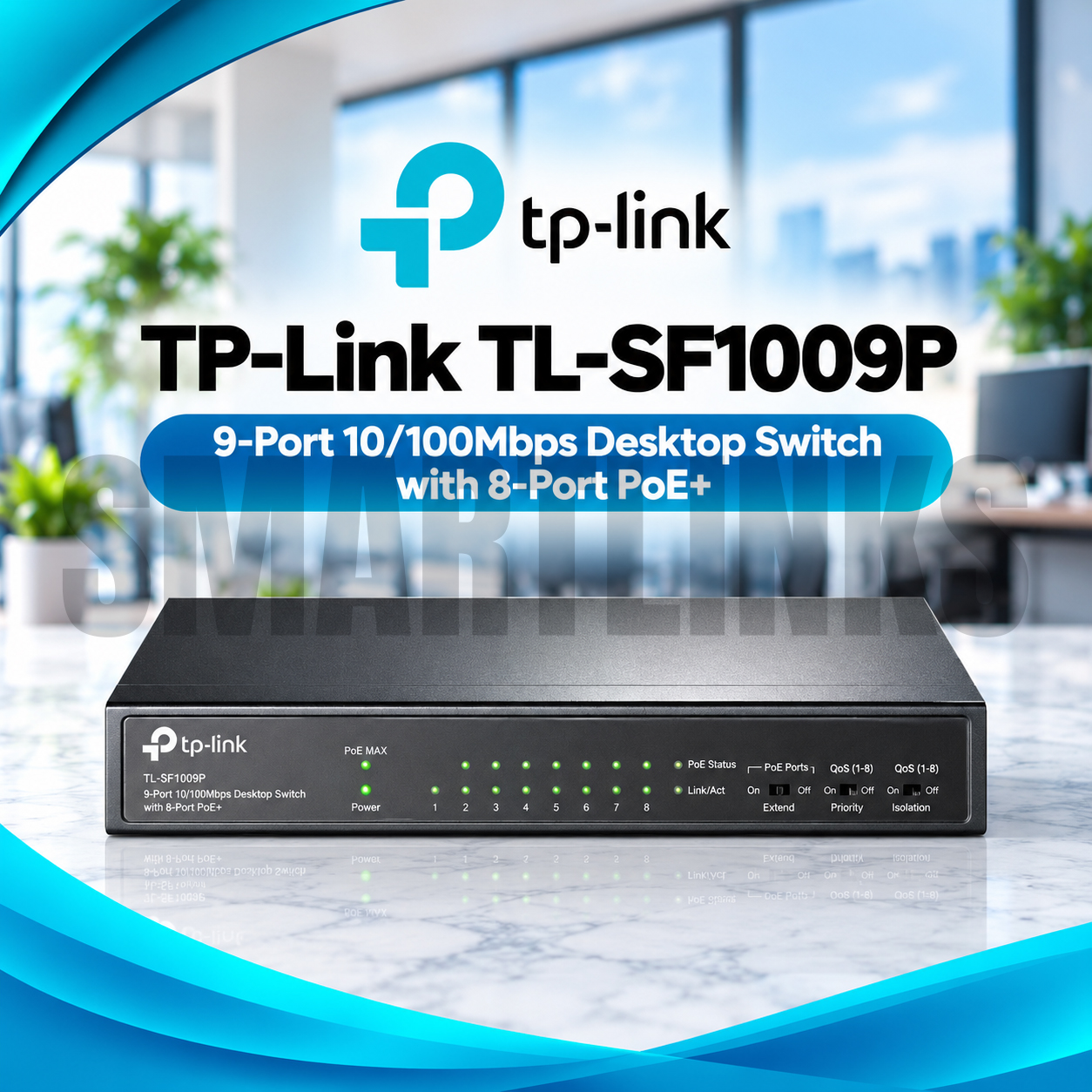

TP-Link TL-SF1009P 9-Port PoE+ Desktop Switch

The TP-Link TL-SF1009P is an unmanaged Fast Ethernet switch designed to simplify connections for IP surveillance, small offices, shops, and other compact networks. Its nine Ethernet ports include eight PoE+ connections, which deliver data and electrical power through compatible network cables. This reduces the need for separate power adapters beside supported cameras, access points, and IP phones. Compact construction and straightforward installation make this model practical for businesses expanding their wired networks.

Eight PoE+ Ports with a 65W Budget

Ports one through eight support IEEE 802.3af/at Power over Ethernet. Each port can supply up to 30 watts, but the combined power budget is limited to 65 watts. These are different limits: the switch cannot supply 30 watts to all eight devices simultaneously. Check each connected device’s peak requirements, including night-vision illumination or moving camera motors, before planning the installation. Equipment needing passive PoE or incompatible voltages requires another power solution. Plan for future additions by leaving some spare network capacity and avoiding unnecessary power consumption during setup.

Nine Fast Ethernet Connections

All nine RJ45 ports support 10/100Mbps connections. The ninth port does not supply PoE power and can connect a router, network video recorder, or existing switch. Auto-negotiation and Auto MDI/MDIX simplify ordinary Ethernet wiring. Because these are Fast Ethernet rather than Gigabit ports, assess camera bitrates and the combined data passing through the uplink. Connecting eight cameras is possible only when both network bandwidth and the shared PoE budget are sufficient.

Extend Mode for Longer Cable Runs

Normal Ethernet installation distances are generally limited to 100 meters with suitable cabling. The TL-SF1009P offers Extend Mode on supported PoE ports, allowing transmission up to 250 meters in suitable conditions. Speeds on extended ports drop to 10Mbps, so verify that this meets each camera’s requirements. Actual range depends on cable quality, cable length, device power consumption, and installation conditions. Extended operation should be tested before permanent deployment.

Priority and Isolation Modes

Priority Mode assigns higher forwarding priority to ports one and two, helping protect important camera traffic during congestion. Isolation Mode separates traffic among PoE ports one through eight, improving separation between connected endpoints. These modes are controlled through physical switches, not a configurable management dashboard. Isolation does not replace a firewall, secure passwords, or properly designed network segmentation, but it provides useful basic controls for surveillance installations.

Intelligent Power Distribution

Built-in power management monitors the total power requested by connected PoE devices. If demand exceeds the 65W budget, the switch can stop delivering power to lower-priority ports to help preserve higher-priority connections. This protection cannot compensate for inadequate power planning. Select compatible devices, calculate their maximum consumption, and leave appropriate capacity for changing operating conditions. Some hardware revisions also offer PoE Auto Recovery; confirm the version before advertising that feature.

Simple Installation and Durable Construction

The TL-SF1009P operates without software configuration. Connect its supplied power adapter, attach network cables, and check indicator lights for connection and PoE status. Its fanless metal case supports quiet use on a desk or wall, where the mounting arrangement permits. Keep the housing ventilated, protect cables from damage, and avoid wet or excessively hot locations. With clear labeling, future maintenance and troubleshooting become easier.

Why Choose TL-SF1009P in Pakistan?

For a small CCTV or office network, the TP-Link TL-SF1009P combines eight PoE+ outputs, an additional data port, extended-range options, and uncomplicated setup. It is best suited to installations where connected equipment fits the 65W shared power limit and 100Mbps Ethernet speeds. Before ordering from Smartlinks Pakistan, verify device compatibility, the hardware revision, included adapter, stock availability, and warranty details.
