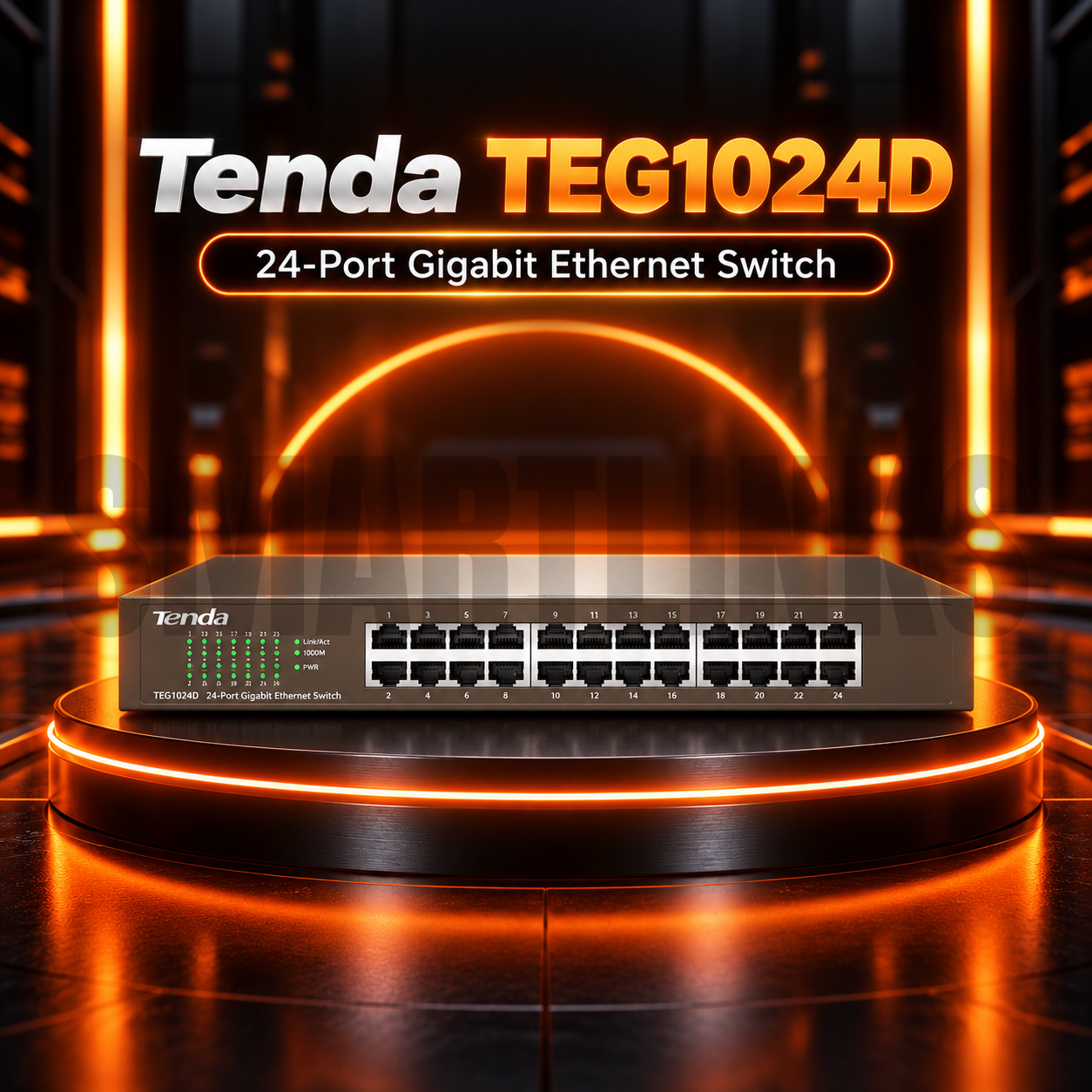

Tenda TEG1024D 24-Port Gigabit Switch

Tenda TEG1024D 24-Port Gigabit Switch for Business Networks

The Tenda TEG1024D is a practical unmanaged Ethernet switch built for offices, shops, schools, and growing business networks. With twenty-four Gigabit ports, it helps connect computers, printers, network video recorders, and other Ethernet devices through a convenient central point. Its straightforward plug-and-play operation makes expansion easier without requiring specialized software knowledge. A sturdy metal body and several mounting options also support tidy installations in workplaces and equipment areas.

Twenty-Four Gigabit Ethernet Connections

Every RJ45 port negotiates automatically at 10Mbps, 100Mbps, or 1000Mbps to match compatible devices. Auto MDI/MDIX simplifies conventional cable connections, helping users avoid selecting special crossover cables. Connect one port to an existing router or upstream network and the remaining twenty-three can serve wired equipment. Gigabit capability is especially useful when several computers exchange files or when compatible network devices handle substantial local traffic. Actual throughput depends on the connected hardware, network design, and cables.

Strong Aggregate Switching Performance

The TEG1024D V9.0 offers 48Gbps switching capacity and a 35.7Mpps packet forwarding rate. Those are aggregate specifications across the switch, rather than a 48Gbps link available through a single port. Store-and-forward technology processes Ethernet frames before passing them toward their destinations. The switch also features an 8K MAC address table and a 4Mb packet buffer, supporting ordinary local communication among connected devices. Ethernet compatibility includes IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards.

Simple Installation without Configuration

There is no management dashboard to configure for everyday switching. Connect the switch to an appropriate AC power source, attach your Ethernet cables, and the ports establish compatible links automatically. A dedicated power indicator and a Link/Act light for each Ethernet port make it easier to check physical connections during setup. As an unmanaged product, this model does not offer configurable VLANs, detailed port monitoring, or other advanced administrative controls. Users requiring those capabilities should consider a managed network switch instead.

Compact Metal Housing and Flexible Mounting

The V9.0 model measures approximately 294 by 120 by 44 millimeters, making it convenient for desks, shelves, equipment rooms, or suitably arranged networking racks. Supported mounting methods include desktop, wall, and rack installation. Its metal enclosure is designed for practical business use. Keep the switch in a dry, ventilated position, ensure the power cable remains accessible, and label connected network leads to simplify future maintenance. Earlier hardware revisions may differ in size, so verify the version before planning mounting space.

Electrical Protection and Energy Use

Tenda specifies 6kV protection for Ethernet ports and 4kV protection at the power input. These ratings provide additional resilience against electrical disturbances but do not replace correct grounding or site-appropriate surge protection. The V9.0 device accepts AC 100–240V at 50/60Hz and has a listed maximum consumption below 12W. Suitable cabling and sensible installation practices help maintain reliable connections.

Suitable Devices and Important Limitations

The Tenda TEG1024D 24-Port Gigabit Ethernet Switch can connect compatible desktops, printers, NVRs, and IP cameras that receive power separately. It does not supply Power over Ethernet, create wireless coverage, provide internet service, or function as a video recorder. Choose appropriate Cat5e or better cables for Gigabit links, and verify that your other network devices support the required speeds.

Buy Tenda TEG1024D in Pakistan

For an uncomplicated way to expand wired networking, this model combines twenty-four Gigabit ports with straightforward operation and flexible placement. Explore the Tenda TEG1024D at Smartlinks.pk for current availability, pricing, warranty information, and related accessories. Confirm the hardware revision and your installation needs before ordering. This helps buyers choose appropriate equipment for dependable everyday home or business networking. Proper planning supports clearer cabling and simpler troubleshooting.
