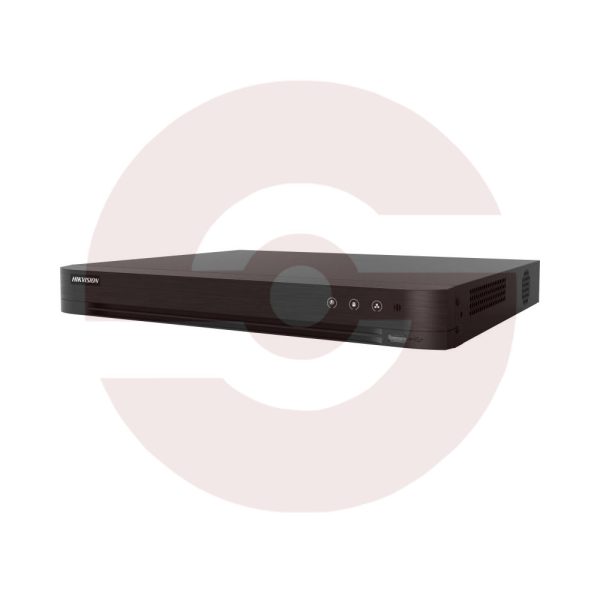

Hikvision DS-7232HGHI-M2
32-ch 1080p Lite 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 18-ch IP camera inputs (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signa
Description
- Motion Detection 2.0
- Human / Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Video and Audio
- IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265 + / H.265 / H.264+/ H.264 IP cameras
- Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 1080 p25, 108 0p30, 720 p25, 720 p30
- AHD Input 1080 p25, 1080 p30, 720 p25, 720 p30
- HDCVI Input 1080 p25, 1080 p30, 720 p25, 720 p30
- CVBS Input PAL / NTSCÂ
- HDMI Output 1-ch, 1920 × 1080/ 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz
- VGA Output 1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
32-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback16-ch
- Recording
- Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
- Encoding Resolution1080p lite / 720p/ 720p lite / WD 1 / 4CIF / VGA / CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p lite / 720p lite / WD1 / 4CIF / VGA @ 15fps; CIF @ 25fps
For 720p stream access: 720p / WD1 / 4CIF / VGA @ 15 fps; CIF @ 25fps
For standard definition stream access: WD1 / 4CIF / VGA/CIF@25fps
Sub-stream: CIF / QVGA @ 15 fps
- Video Bitrate 32 Kbps to 4 Mbps
- Dual-stream Non support
- Stream Type Video, Video & Audio
- Audio Compression G.7 11u
- Audio Bitrate 64 Kbps
- Network
- Remote Connection 128
- Total Band width 128 Mbps
- Network Protocol TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF, EHome
- Network Interface 1, RJ 45 10M / 100M / 1000M self-adaptive Ethernet interface
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- Serial Interface RS – 485 (half-duplex)
- SAT A2 SATA interface
- Capacity Up to 10 TB capacity for each disk
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
- General
- Power Supply 12 VDC, 3.33 A
- Consumption ≤ 18 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10 % to 90%
- Dimension (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
- Weight≤ 2.2 kg (without HDD, 4.9 lb.)
