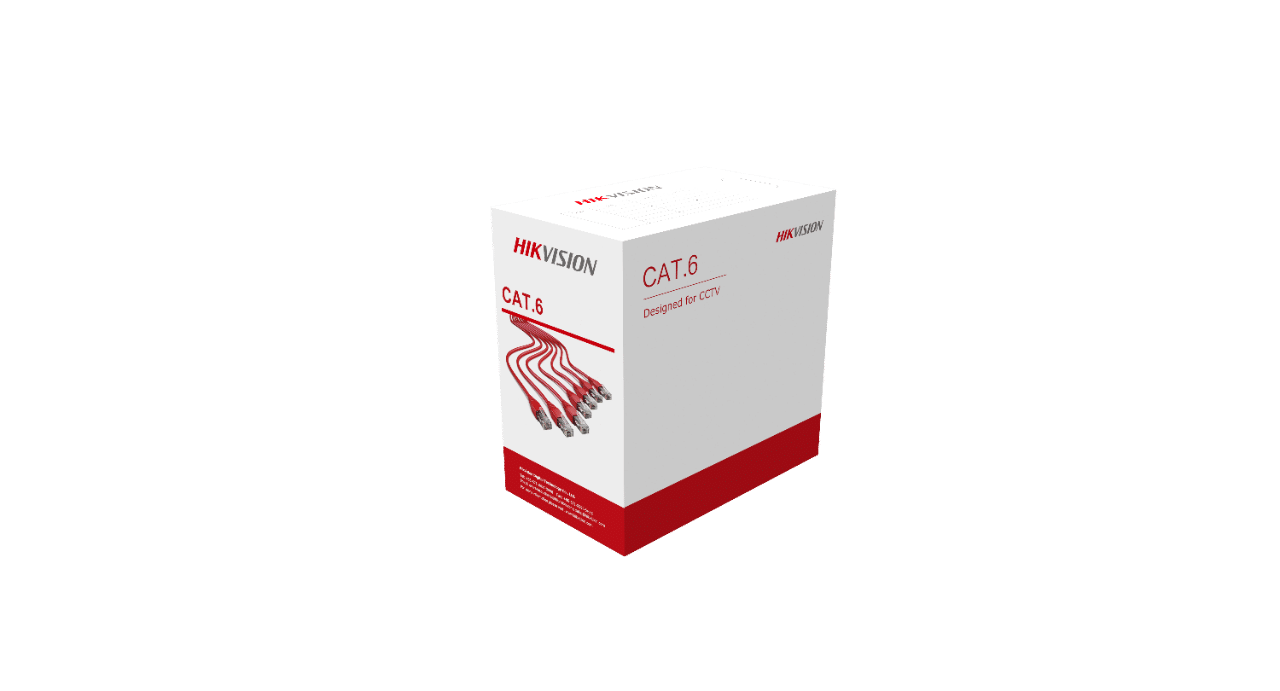

Hikvision DS-1LN6U-SC0
305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Orange)
- Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801
- Compliant with RoHS 2.0
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
18
People watching this product now!
Description
- General
- Rip-Cord Yes
- Category Cat.6
- Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
- Reference Standard ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
- Fire Resistance No
- Separator Yes
- Conductor
- Material Solid-Bare Copper (99.95%)
- Diameter 0.55 ± 0.005 mm, 23 AWG
- Insulation
- Material HDPE
- Diameter 0.98 ± 0.05 mm
- Sheath Physical Properties
- Before Aging
Tensile strength ≥ 13.5 Mpa
Elongation ≥ 150%
- Aging Period 100°C × 24h × 10d
- After Aging
Tensile strength ≥ 12.5 Mpa
Elongation ≥ 125%
- Cold Bend -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
- Electrical Characteristics (20℃)
- 1.0-250.0 MHz Impedance
100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
- 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
- DC Resistance ≤ 9.38 Ω/100 m
- DC Conductor Resistance Unbalance ≤ 5.0%
- Package Dimension 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″)
- Weight 12.3 ± 0.5kg
- Cable Length (305 ± 1.5) m
- Ambient Temperature -20°C to 75°C (-4°F to 167°F)
- Operating Voltage 60 V
- Sheath
- Thickness 0.50 ± 0.10 mm
- Material PVC
- Color Orange
- Diameter 6.00 ± 0.30 mm
